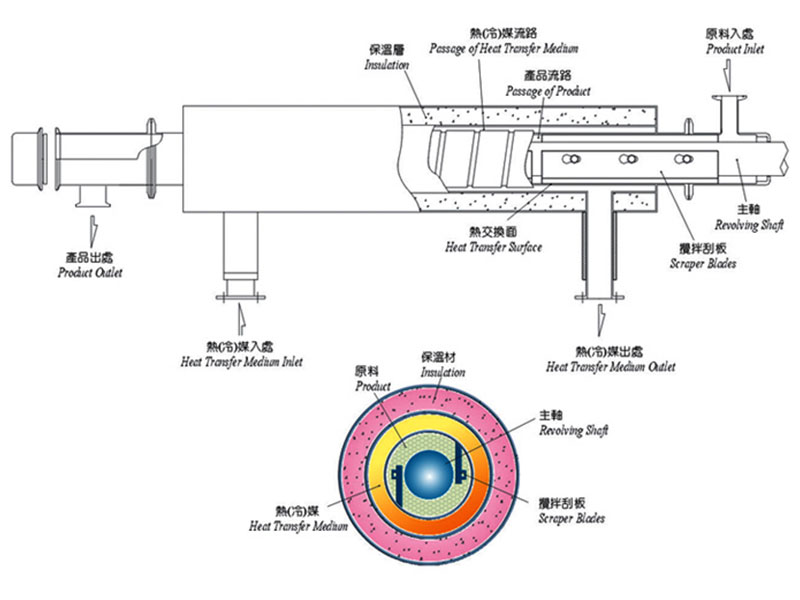

The cylinder through which material contains a revolving shaft and is jacketed. The material is forced through the narrow annular passage between the cylinder and the shaft while heat transfer medium (steam, hot water, Dow-Therm etc. for heating, and cooling water, brine, freon or ammonia etc. for cooling) passes through the jacket and performs heat exchange.

Features:

1. Versatility

  • Designing under ASME form, it accords with 3A & USDA standard.
  • Completely closed system assures sanitary operation.
  • Automatic operation holds labor costs to a minimum.
  • Process temperatures high enough to sterilize and low enough to slush freeze.

2. Efficiency

  • Scraped-surface design means to lower energy requirement.
  • The continuous scraping promotes very rapid heat transfer and keeps product at uniform consistency throughout the temperature progression.
  • Processing of high-viscous liquid is accomplished in a matter of seconds.

3. Product integrity

  • Uniformity of product is assured.
  • Product luster and transparency are increased.

4. Designed for CIP (Clean in place)

  • Easy to clean quickly and save time.
  • Cleaning by hot water or chemical is achievable.

Specifications:

Model Working Capacity
(Liter / HR)
Motor (HP) R. P. M. Machine Size
(L x W x H mm)
Tube 1 Tube 2 Tube 3
HS-IQ100 60~150 1/2 1/2 1 15~120 1100 x 860 x 1100
HS-IQ250 200~350 1 1 2 15~120 1540 x 1250 x 1210
HS-IQ500 350~750 1 2 3 15~120 1800 x 1400 x 1400

※ The output is decided by product, The above specifications are modified without notice.
